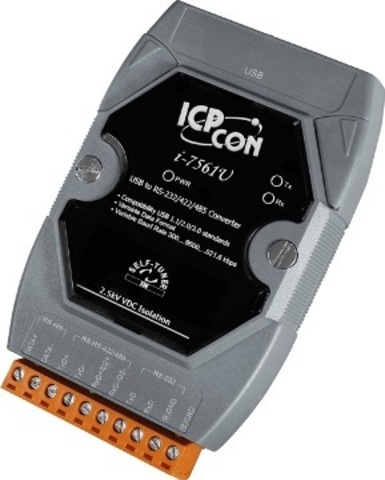

Конвертер ICP DAS I-7561U

В наличии

Конвертер USB в RS-232/422/485 с автоматическим контролем за направлением передачи данных для RS-485, изоляция.

Предназначен для программирования всей линейки контроллеров Segnetics.

Совместимость с операционными системами: Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows 10

Спецификация 7561U
Interface
USB		Compatibility: USB 1.1/2.0/3.0
Drivers		Windows 10 / 8.1 (32/64-bit) / 8 (32/64-bit) / 7 (32/64-bit) / Vista (32/64-bit) / XP / 2012 / 2000 / 98 / ME / Linux
Serial Interface	RS-232	TxD, RxD, GND	The RS-232, RS-422 and RS-485 (нельзя использовать одновременно)
	RS-422	TxD+, TxD-, RxD+, RxD
	RS-485	Data+, Data-
2-wire cabling/4-wire cabling		Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change
RS-422/485 Transfer Distance		Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance may change)
Maximum Supported RS-485 Devices		256 (Without repeater)
Self-Tuner Asic Inside (RS-485)		Yes
Speed		300 ~ 921.6 kbps
Connection	RS-232/422/485	Removable 10-Pin Terminal Block
	USB	Type B
Cable Included		CA-USB18 (1.8 m Cable) x 1
LED Indicators
Power		Yes
Power
Input Voltage Range		+5 VDC From USB
Power consumption		0.5 W
Casing
Mechanical		Plastic
Flammability		Fire-Retardant Materials (UL94-V0 Level)
Dimensions		72 mm x 115 mm x 35 mm
Installation		DIN-Rail
Environment
Operating Temperature		-25°C ~ 75 °C (-13°F ~ 167° F)
Storage Temperature		-30°C ~ 75 °C (-22°F ~ 167° F)
Ambient Relative Humidity		10% ~ 90% RH, non-condensing
